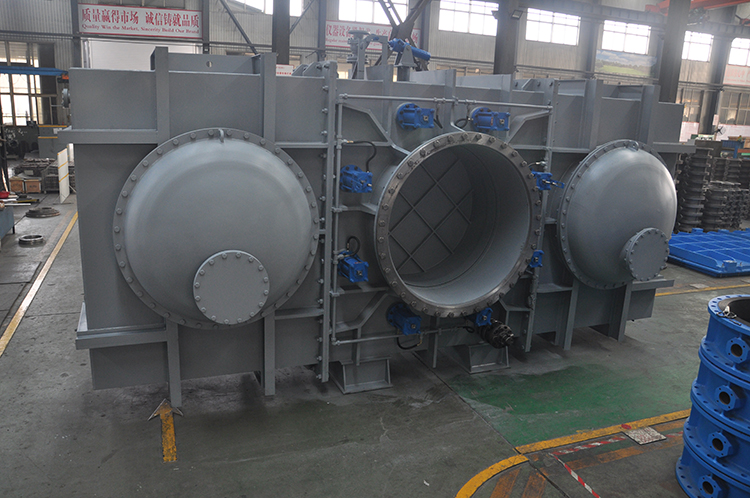

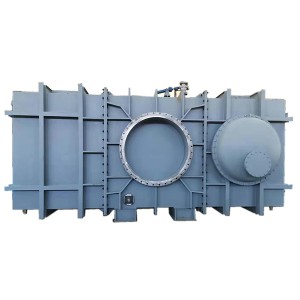

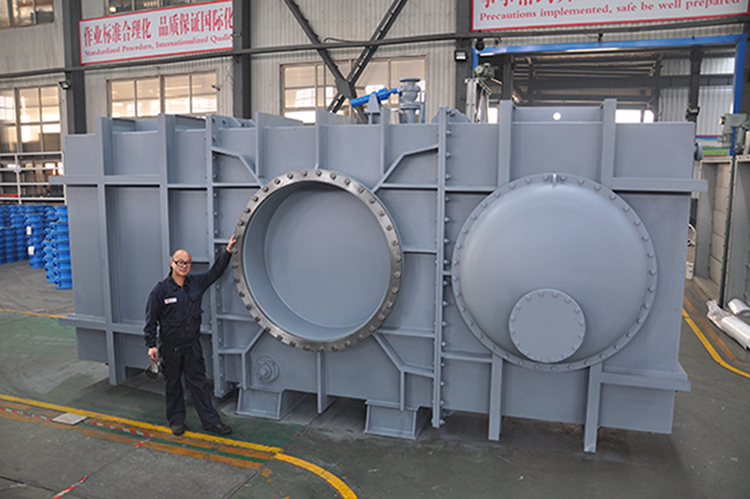

Hydraulic operate closed type blind plate valve
Hydraulic operate closed type blind plate valve
1.This valve has an open designed structure with fully closed shell, which has zero leakage during operation. It has a good resistance to the external force of the pipeline.
The hydraulic actuators are set outside, it’s easy to operate&maintain&check at work site.
2.This valve has the characteristics of multi-point synchronous clamping equipment, has good sealing performance, reliable operation, convenient maintenance, etc.
3.With rubber sealing embedded in valve body, it is easy to replace and has a long term service time.
4.Design standard: GB/T9115-98, we also can produce this valve under customerization.
Pressure: 0.01-2.5 Mpa
Size: D400-DN2800
| Norminal Pressure Mpa | 0.05 | 0.10 | 0.15 | 0.25 |
| Sealing Test | 0.055 | 0.11 | 0.165 | 0.275 |
| Sheel Test | 0.075 | 0.15 | 0.225 | 0.375 |
| Sealing Material | NBR | Silicone rubber | VITON | Metal |
| Working Temperature | -20–100oC | -20–200 oC | -20–300 oC | -20–45 oC |
| Suitable Media | Air, Coal gas, dusty gas,etc. | |||
| Supply Voltage | 380V AC, etc. | |||
| Part | Body/Disc | Lead screw | Nut | Compensator | Sealing |
| Material | Carbon steel | Alloy steel | Mangain alloy | Stainless steel | VITON/NBR/Silicone rubber/Metal |
It is widely used in the pipe system of metallurgical,chemical,electric power and other industries for the purpose of cutting off or connecting.
Electric valve can allocated explosion-proof control cabinet to remote control. The longest distance can be 10 meters.
