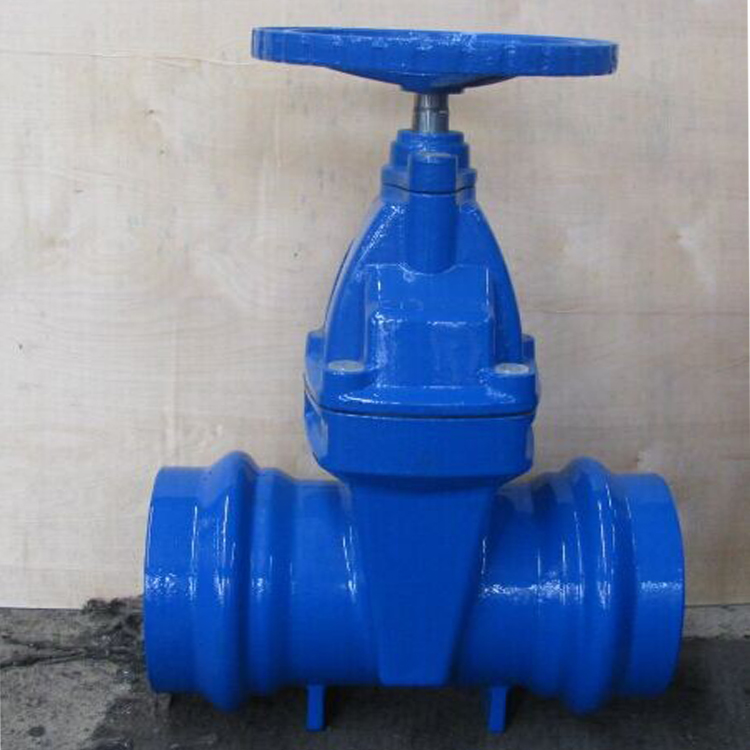

NRS Socket end resilient gate valve

Short Description:

Socket end resilent seat gate valve Size: DN 40 – DN 300 Face-to-Face dimension conforms to BS, DIN, ANSI, AWWA standards. Socket end is suitable for PVC and PE pipe. Working Pressure 10 bar 16 bar Testing Pressure Shell: 15 bars; Seat: 11 bar. Shell: 24bars; Seat: 17.6 bar. Working Temperature 10°C to 120°C Suitable Media Water. No. Part Material 1 Body Cast iron / Ductile iron 2 Bonnet Cast iron / Ductile iron 3 Wedge Ductil...


Product Detail

Product Tags

Socket end resilent seat gate valve

NRS Socket end resilient gate valve

Size: DN 40 – DN 300NRS Socket end resilient gate valve

Face-to-Face dimension conforms to BS, DIN, ANSI, AWWA standards.

Socket end is suitable for PVC and PE pipe.

NRS Socket end resilient gate valve

Working Pressure

10 bar

16 bar

Testing Pressure

Shell: 15 bars; Seat: 11 bar.

Shell: 24bars; Seat: 17.6 bar.

Working Temperature

10°C to 120°C

Suitable Media

Water.

NRS Socket end resilient gate valve

No.

Part

Material

1

Body

Cast iron / Ductile iron

2

Bonnet

Cast iron / Ductile iron

3

Wedge

Ductile iron with NBR/EPDM

4

Stem

(2 Cr13) X20 Cr13

5

Stem nut

Brass

6

Fixed washer

Brass

7

Hand wheel

Ductile iron
