Pneumatic actuated ductile iron knife gate valve

Pneumatic actuated ductile iron knife gate valve Featured Image
  • Pneumatic actuated ductile iron knife gate valve
  • Pneumatic actuated ductile iron knife gate valve
  • Pneumatic actuated ductile iron knife gate valve

Short Description:

Pneumatic actuated ductile iron knife gate valve The movement direction of the knife gate valve is perpendicular to the fluid direction, and the medium is cut off by the gate. In order to achieve high sealing performance, the O-ring sealing seat can be selected to achieve bidirectional sealing. The knife gate valve has small installation space, not easy to accumulate debris and etc. The knife gate valve should generally be installed vertically in pipeline. This knife gate valve is used i...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Nominal pressure: PN10
  • Working pressure: 10 bar
  • Connection: Wafer connection
  • Operation: Pneumatic actuator
  • Body material: Ductile iron
  • Sealing material: EPDM
  • Fluid: Slurry
    • WhatsApp

    Product Detail

    Product Tags

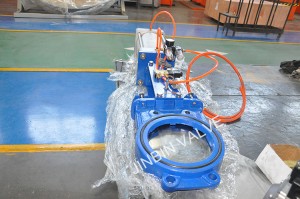

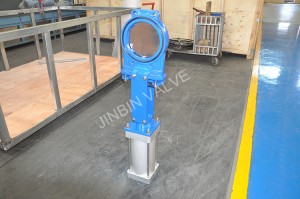

    Pneumatic actuated ductile iron knife gate valve

    pneumatic stainless steel knife gate valves
    The movement direction of the knife gate valve is perpendicular to the fluid direction, and the medium is cut off by the gate. In order to achieve high sealing performance, the O-ring sealing seat can be selected to achieve bidirectional sealing.

    The knife gate valve has small installation space, not easy to accumulate debris and etc.
    The knife gate valve should generally be installed vertically in pipeline.
    This knife gate valve is used in chemical industry, coal, sugar, sewage, paper making andother fields widely. It is an ideal sealed valve, especially suitable for adjusting and cut off the pipe in paper industry

    pneumatic stainless steel knife gate valves

     No.   Part  Material
     1  Body  Ductile iron
     2  Gate  Stainless steel
     3  Sealing  EPDM
     4  Stem  SS420



    Pressure and temperature

    Connection pressure rating                                                              PN10
    Test pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.
    Working temperature

    -10°C to 80°C (NBR)

    -10°C to 120°C (EPDM)
    Suitable fluid                                                 Slurry, mud, waste water etc.



    pneumatic stainless steel knife gate valves
