China Electric actuated ductile iron V- port knife gate valve Manufacturer and Supplier

Electric actuated ductile iron V- port knife gate valve

Short Description:

Electric actuated ductile iron V- port knife gate valve The movement direction of the knife gate valve is perpendicular to the fluid direction, and the medium is cut off by the gate. V-Port Design is offered for controlling media where a more linear flow characteristic is desired. V-port configurations of knife gate valve are used for throttling slurry applications. The knife gate valve should generally be installed vertically in pipeline. No. Part Material 1 Body Ductile i...

FOB Price: US $10 - 9,999 / Piece

Min.Order Quantity: 1 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Nominal pressure: PN10

Working pressure: 10 bar

Connection: Wafer connection

Operation: Electric actuator

Body material: Ductile iron

Sealing material: EPDM

Fluid: Slurry

Send email to us Download as PDF

Product Detail

Product Tags

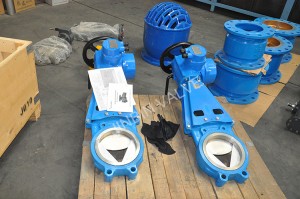

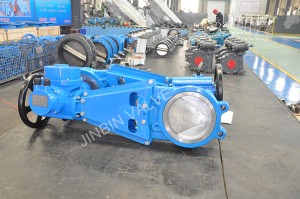

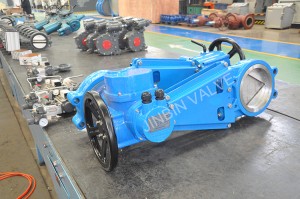

Electric actuated ductile iron V- port knife gate valve

The movement direction of the knife gate valve is perpendicular to the fluid direction, and the medium is cut off by the gate.

V-Port Design is offered for controlling media where a more linear flow characteristic is desired.

V-port configurations of knife gate valve are used for throttling slurry applications.

The knife gate valve should generally be installed vertically in pipeline.

No.	Part	Material
1	Body	Ductile iron
2	Gate	Stainless steel
3	Sealing	EPDM
4	Stem	SS420

Connection pressure rating	PN10
Test pressure	Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure.
Working temperature	-10°C to 80°C (NBR) -10°C to 120°C (EPDM)
Suitable fluid	Slurry, mud, waste water etc.
