Rubber lined wafer butterfly valve

Short Description:

Rubber lined wafer butterfly valve Size: DN40 – DN500 Design standard: API 609, BS EN 593, MSS SP-67. Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67. Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suit...


Product Detail

Product Tags

Rubber lined wafer butterfly valve

Size: DN40 – DN500

Design standard: API 609, BS EN 593, MSS SP-67.

Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.

Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 10/16, BS 10 Table E, JIS B2212/2213 5K, 10K, 16K.

Test: API 598.

Rubber lined wafer butterfly valve

Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.

Rubber lined wafer butterfly valve

Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nylon+Ductile iron

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel

Bushing

PTFE

“O” ring

PTFE

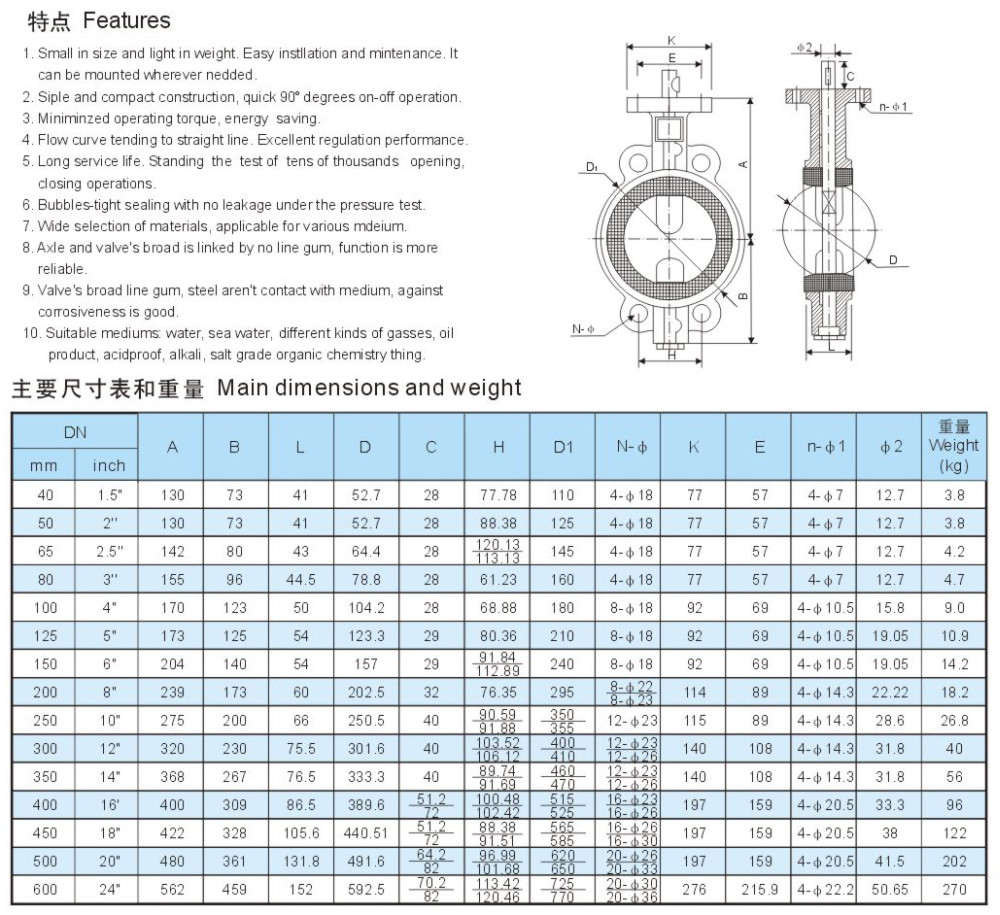

Technical data:

Rubber lined wafer butterfly valve

Rubber lined wafer butterfly valve
