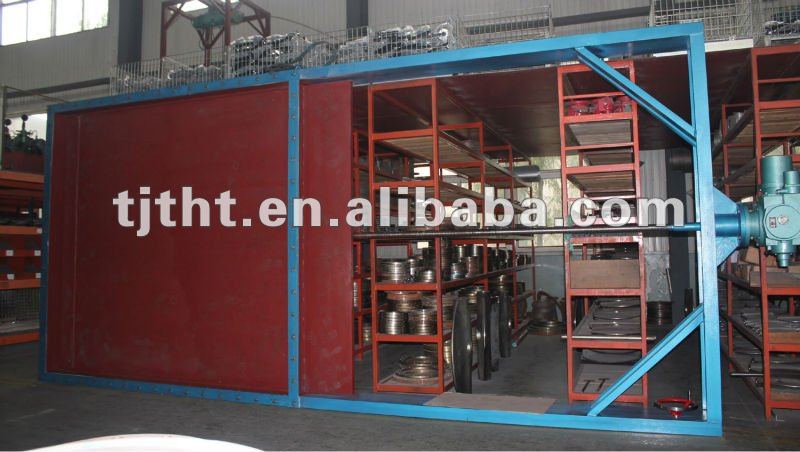

Slide damper gate valve
Slide damper gate valve
This slide damper gate valve has the characteristics ofsimple design, light weight, easy to maintaince and good seal etc. It is good for open-close operatation and easy to check the operated situation. There is irreplaceable advantage of enclosed devices.
1. Materials: Carbon steel, stainless steel;
2. Different size from 200x200mm to 3000x3000mm;
3. There is manual, electric and pneumatic actuators.
It is suitable for dusty situation and widely used in metalurgy and chemical industries.
| Norminal Pressure | 0.05 Mpa | 0.1 Mpa | 0.05 Mpa | 0.25 Mpa |
| Sealing Test Pressure | 0.055 Mpa | 0.11 Mpa | 0.165 Mpa | 0.275 Mpa |
| Shell Test Pressure | 0.075 Mpa | 0.15 Mpa | 0.225 Mpa | 0.375 Mpa |
| Oil Test | 4-6 Mpa | |||
| Sealing Materials | NBR | Silicon Rubber | VITON | Metal seat |
| Suitable Temperature | -20 – 100°C | -20 – 200°C | -200 – 300°C | -20 – 450°C |
| Suitable Media | Air, coal gas, dusty gas etc. | |||
Note: It can be desinged as customer’s requirment. Please contact for the specificed drawing and dimension.
