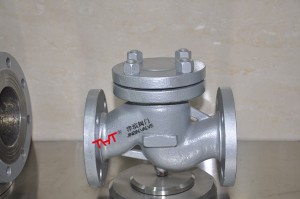

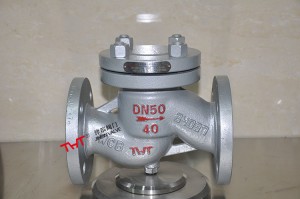

WCB flange lift type check valve
WCB flange lift type check valve
1. When the medium flows in the specified direction, the valve disc is affected by the medium force. When the medium is opened for countercurrent, the valve disc and the sealing surface of the valve seat are closed due to the self weight of the valve disc and the reverse force of the medium, so as to prevent the countercurrent of the medium.
2. The sealing surface of the valve body and disc shall be overlaid with stainless steel.
| Suitable size | DN 50– DN500mm |
| Nominal pressure | PN16, PN25, PN40 |
| Test pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| temp. | -10°C to 250°C |
| Suitable medium | Water, Oil and gas. |
| No | Name | Material |
| 1 | Body | WCB |
| 2 | Disc | WCB |
| 3 | Stem | SS420 |
