Flange lift type check valve

Steel flange lift type check valve

For BS EN1092-2 PN10 / PN16/ PN25 flange mounting.

Face-to-Face dimension conforms to ISO 5752 / BS EN558.

Steel flange lift type check valve

Working Pressure

PN10 / PN16 / PN25

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 250°C

Suitable Media

Water, Oil and gas.

Steel flange lift type check valve

Part

Material

Body

Carbon steel  / Stainless steel

Disc

Carbon steel / Stainless Steel

Spring

Stainless Steel

Shaft

Stainless Steel

Seat Ring

Stainless steel

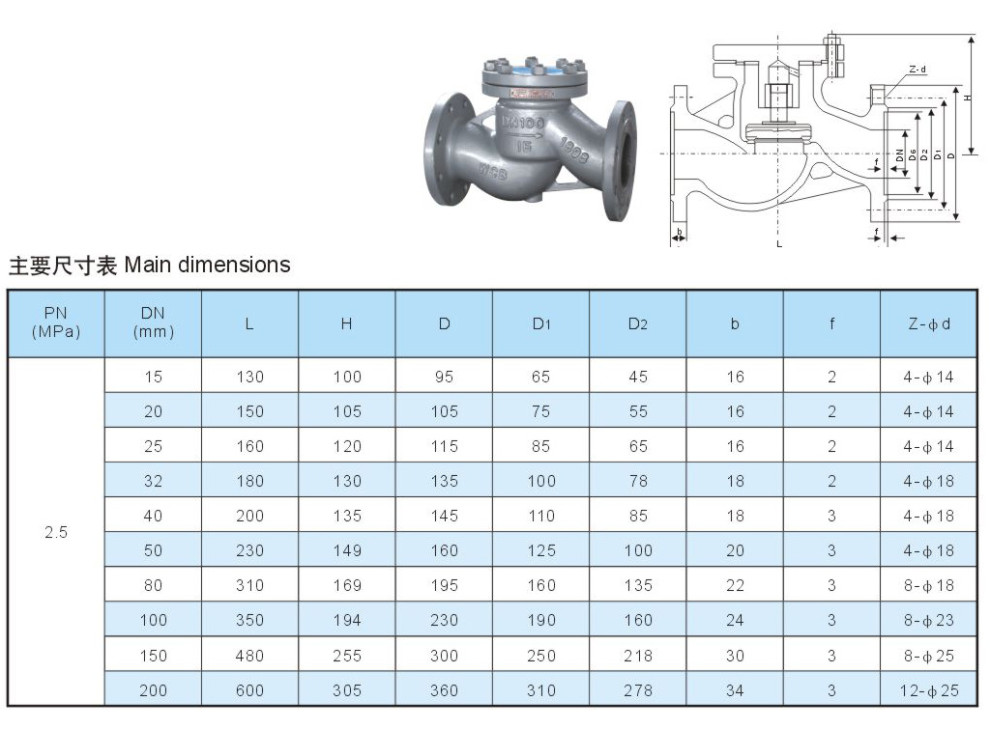

Steel flange lift type check valve

Steel flange lift type check valve
