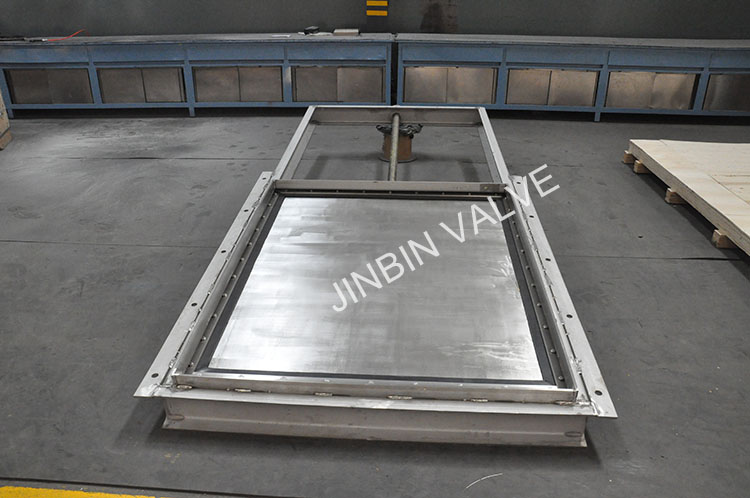

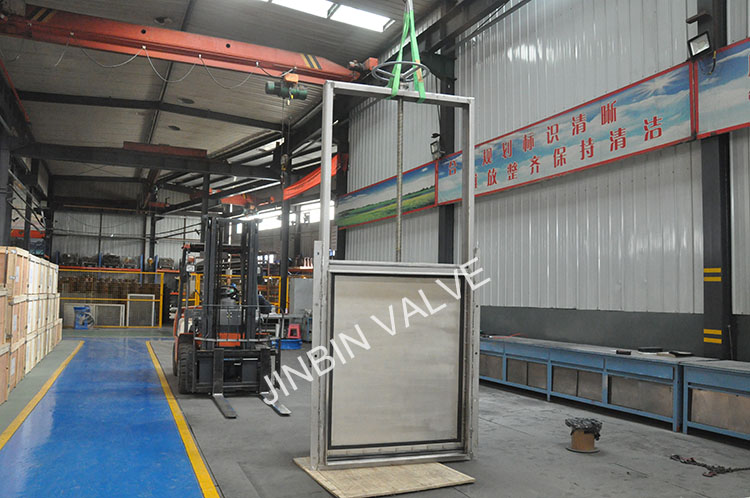

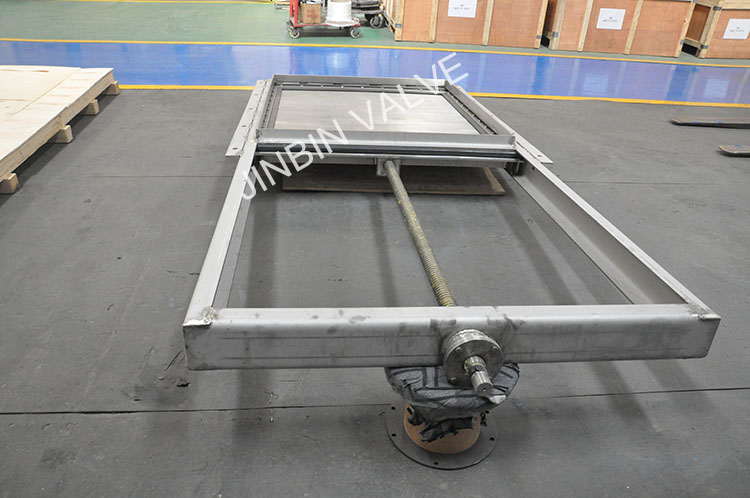

1200x1500mm stainless steel manual operation wall type penstock gate

Short Description:

1200x1500mm stainless steel manual operation wall type penstock gate The penstock gate is widely used in the pipe mouth where the medium is water (raw water, clean water and sewage), the medium temperature is ≤ 80 ℃, and the maximum water head is ≤ 10m, the intersection kiln shaft, sand settling tank, sedimentation tank, diversion channel, pump station intake and clean water well, etc., so as to realize the flow and liquid level control. It is one of the important equipment for water supply ...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product name: 1200x1500mm stainless steel manual operation wall type penstock gate
  • Operation: hand wheel
  • Body material: stainless steel
  • Sealing material: EPDM
  • Size: 1200x1500mm
  • Type: wall type
  • Working fluid: water, waste water, sea water
  • Working temperature: Normal temperature
  • Product Detail

    Product Tags

    1200x1500mm stainless steel manual operation wall type penstock gate

    API flange swing check valve

    The penstock gate is widely used in the pipe mouth where the medium is water (raw water, clean water and sewage), the medium temperature is ≤ 80 ℃, and the maximum water head is ≤ 10m, the intersection kiln shaft, sand settling tank, sedimentation tank, diversion channel, pump station intake and clean water well, etc., so as to realize the flow and liquid level control. It is one of the important equipment for water supply and drainage and sewage treatment.

    Wall type penstocks is used in inlet and outlet of wall for open or close, and use anchor bolts to fix the penstock to the hole surface.



    API flange swing check valve

    Size

    customized

    Operation way

    hand wheel, bevel gear, electric actuator, pneumatic actuator

    Working Temperature

    -10°C to 80°C

    Suitable Media

    Water, clean water, sewage etc.



    API flange swing check valve

    Part

    Material

    Body

    Carbon steel/Stainless steel

    Disc

    Carbon steel / Stainless Steel

    Sealing

    EPDM

    Shaft

    Stainless Steel



    API flange swing check valve
