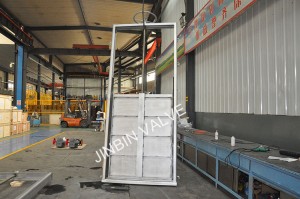

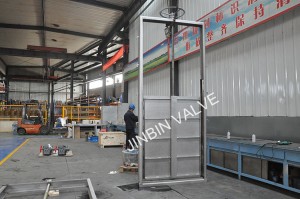

stainless steel manual operation channel type penstock gate
stainless steel manual operation channel type penstock gate
The penstock gate is widely used in the pipe mouth where the medium is water (raw water, clean water and sewage), the medium temperature is ≤ 80 ℃, and the maximum water head is ≤ 10m, the intersection kiln shaft, sand settling tank, sedimentation tank, diversion channel, pump station intake and clean water well, etc., so as to realize the flow and liquid level control. It is one of the important equipment for water supply and drainage and sewage treatment.hannel penstocks have fixed parts for channel by concrete pouring.
Size |
customized |
Operation way |
hand wheel, bevel gear, electric actuator, pneumatic actuator |
Working Temperature |
-10°C to 80°C |
Suitable Media |
Water, clean water, sewage etc. |
Part |
Material |
Body |
Carbon steel/Stainless steel |
Disc |
Carbon steel / Stainless Steel |
Sealing |
EPDM |
Shaft |
Stainless Steel |
