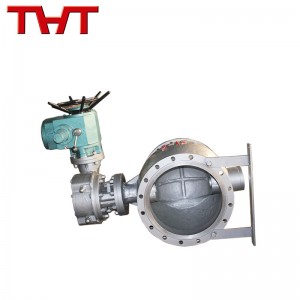

Electric eccentric flange Ball Valve

Electric eccentric flange ball valve

Size: DN50-DN2000

1. Design as GB/T12237.

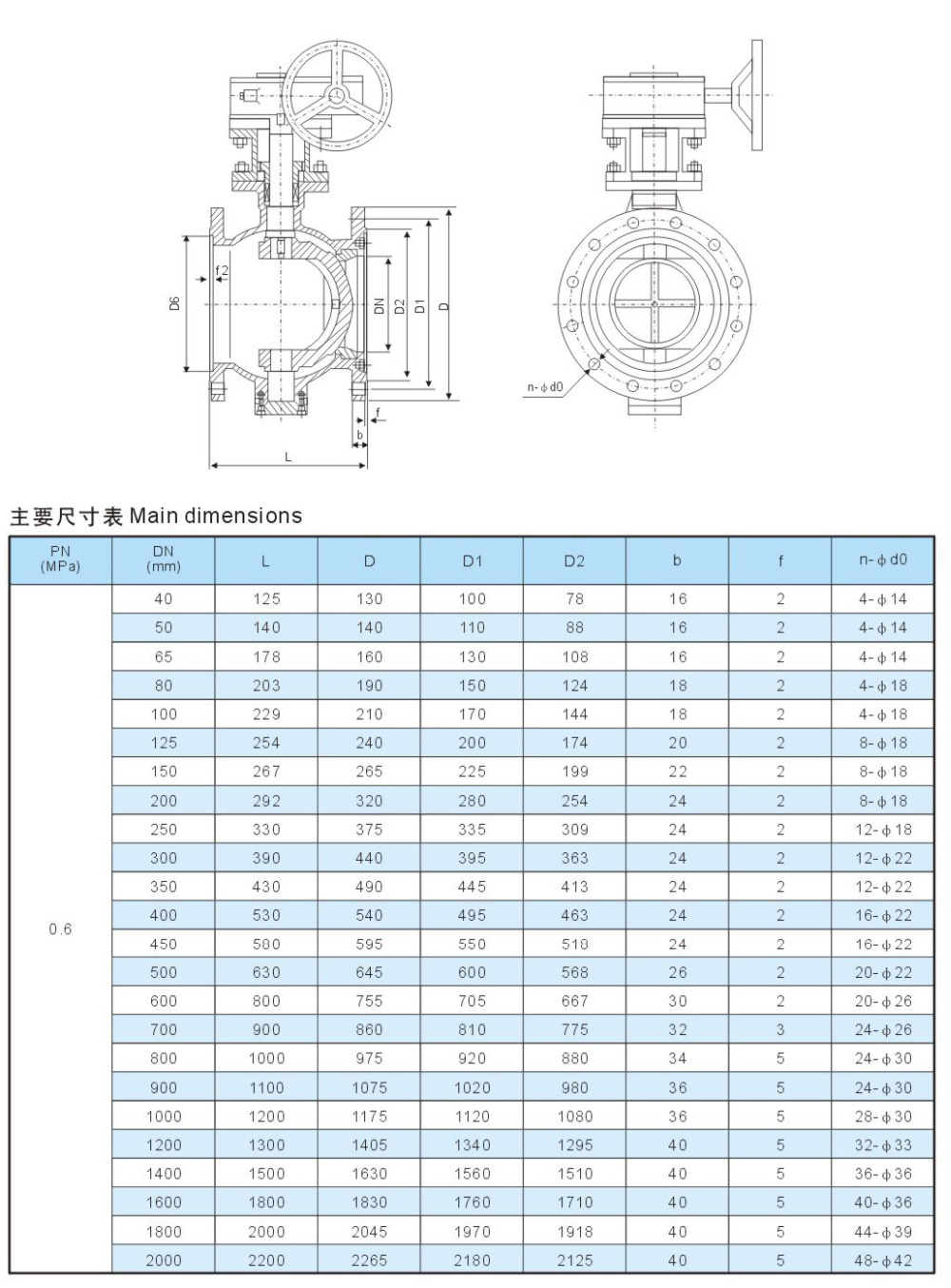

2. Face-to-Face dimension conforms to ISO 5752.

3. Flange drilling is suitable for BS EN1092-2 PN10 / PN16/PN25.

4. Test as ISO5208.

Electric eccentric flange ball valve

Nominal Presesure

(MPA)

Shell Test Water Seal Test
Mpa Mpa

1.0

1.5 1.1

1.6

2.4 1.76

Electric eccentric flange ball valve

No.

Part

Material

1

Body/Wedge

Carbon steel (WCB)/CF8/ CF8M

2

Stem

SS416 (2Cr13) / F304/F316

3

Seat

SS/Stellite

4

Ball

Alloy steel / SS

5

Packing

(2 Cr13) X20 Cr13

Electric eccentric flange ball valve

Electric eccentric flange ball valveElectric eccentric flange ball valve

Feature and usage:

The eccentric ball valve is the ideal equipment for spray pulverized coal, coke oven gas, dusty gas and granular fluid. It is widely used in metallurgy industries. There are following charcters.

1. Straight, single seal, eccentric structure is particularly used for two-phase flow of spray pulvereized coal injection medium. It will not be unobstructed flow and stuck phenomennon.

2. There is compensation dosage of seal to make sure the long time usage.

3. It is easy to change the seat to avoid the change of whole valve.

Electric eccentric flange ball valve

Electric eccentric flange ball valve
