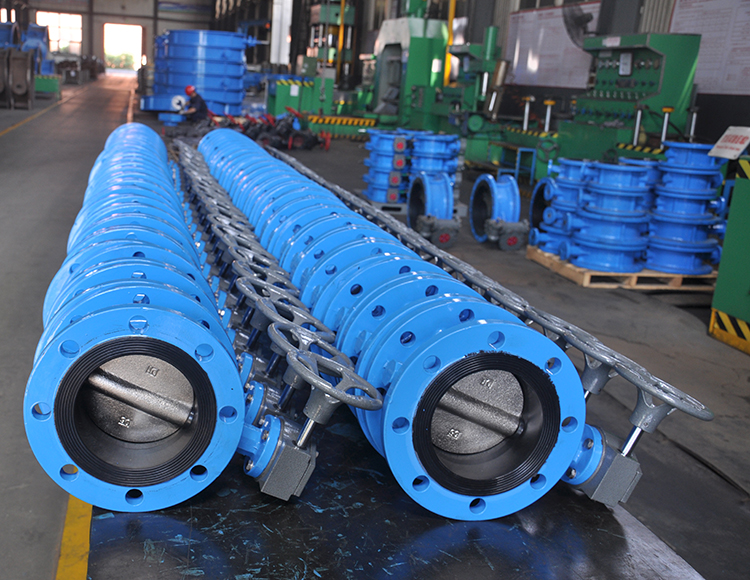

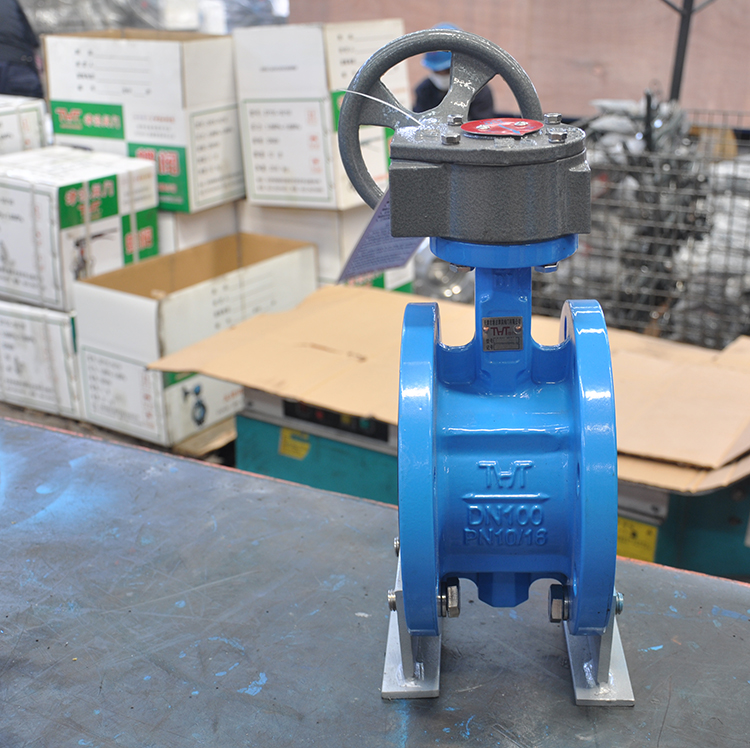

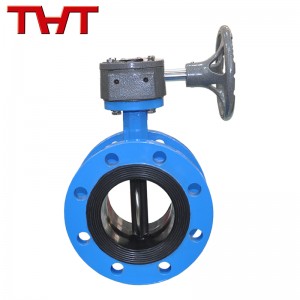

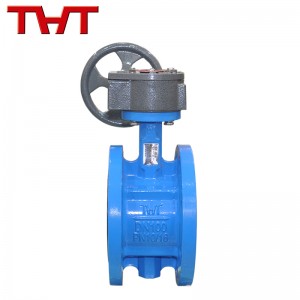

Manual resilient seat flanged butterfly valve

Short Description:

Manual resilient seat flanged butterfly valve Size: 2”-48” / 40mm – 1200 mm Design standard: API 609, BS EN 593. Face-to-Face dimension: API 609, BS 5155, ISO 5752. Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K. Test: API 598. Working Pressure PN10 / PN16 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 80°C (NBR) -10°C to 120°C (EPDM) Suitable Media Water, Oil and gas. ...


Product Detail

Product Tags

Manual resilient seat flanged butterfly valve

Size: 2”-48” / 40mm – 1200 mm

Design standard: API 609, BS EN 593.

Face-to-Face dimension: API 609, BS 5155, ISO 5752.

Flange Drilling: ANSI B 16.1, BS4504, DIN PN 10 / PN 16, JIS 5K, 10K, 16K.

Test: API 598.


Working Pressure

PN10 / PN16

Testing Pressure

Shell: 1.5 times rated pressure,

Seat: 1.1 times rated pressure.

Working Temperature

-10°C to 80°C (NBR)

-10°C to 120°C (EPDM)

Suitable Media

Water, Oil and gas.


Parts

Materials

Body

Cast iron, ductile iron, carbon steel, stainless steel

Disc

Nickel ductile iron / Al bronze / Stainless steel

Seat

EPDM / NBR / VITON / PTFE

Stem

Stainless steel / Carbon steel

Bushing

PTFE

“O” ring

PTFE

Worm gearbox

Cast iron / Ductile iron

The product is used for throttling or shutting off the flow of corrosive or non corrosive gased, liquids and semi liquid. It can be installed in any selected position in pipelines in the industries of petroleum processing, chemicals, food, medicine, textile, paper making, hydroelectricity engineering, building, water supply and sewage, metallurgy, energy engineering as well as light industry.

Manual resilient seat flanged butterfly valve
