PN25 Large siize lugged type butterfly valve
PN25 Large siize lugged type butterfly valve

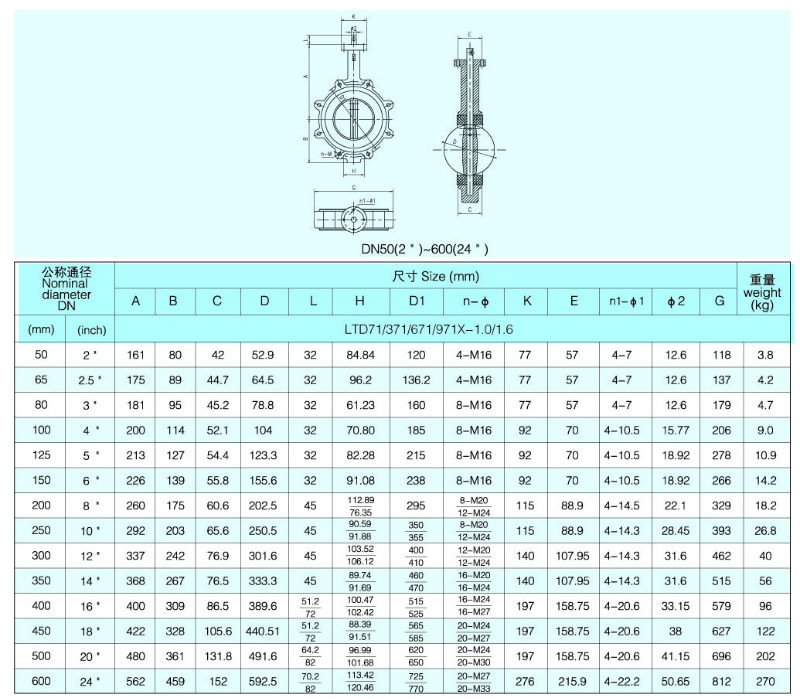

Size: 2”-24” / 50mm – 600 mm
Design standard: API 609, BS EN 593, MSS SP-67.
Face-to-Face dimension: API 609, ISO 5752, BS EN 558, BS 5155, MS SP-67.
Flange Drilling: ANSI B 16.1, BS EN 1092, DIN 2501 PN 25.
Test: API 598.
Lever / worm gearbox operator / electric operator / pneumatic operator
|
Working Pressure |
PN25 |
|
Testing Pressure |
Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
|
Working Temperature |
-10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
|
Suitable Media |
Water, Oil and gas. |
Materials:
|
Parts |
Materials |
|
Body |
Cast iron, ductile iron, carbon steel, stainless steel |
|
Disc |
Nickel ductile iron / Al bronze / Stainless steel |
|
Seat |
EPDM / NBR / VITON / PTFE |
|
Stem |
Stainless steel / Carbon steel |
|
Bushing |
PTFE |
|
“O” ring |
PTFE |
|
Pin |
Stainless steel |
|
Key |
Stainless steel |
This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry etc. and industrial environmental protection, water treatment, high building, water supply and draian tubing line open or close or adjusting medium.
Note: Please contact for drawing and techinacl data.
