socket welded forged check valve

socket welded forged check valve Featured Image
  • socket welded forged check valve

Short Description:

Forged steel check valve Face-to-face dimension acc to ASME B16.10. For ANSI B16.5 CLASS 600, 800, 1500 socket weld end.Test as API598. Working Pressure Class600/800/1500 Testing Pressure Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. Working Temperature -10°C to 250°C Suitable Media Oil and gas. Part Material Body/Bonnet ASTM A105, A182 F304/316/304L/316L Disc ASTM A105, A182 F304/316/304L/316L


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
    • Download as PDF

    Product Detail

    Product Tags

    Forged steel check valve

    socket welded forged check valve

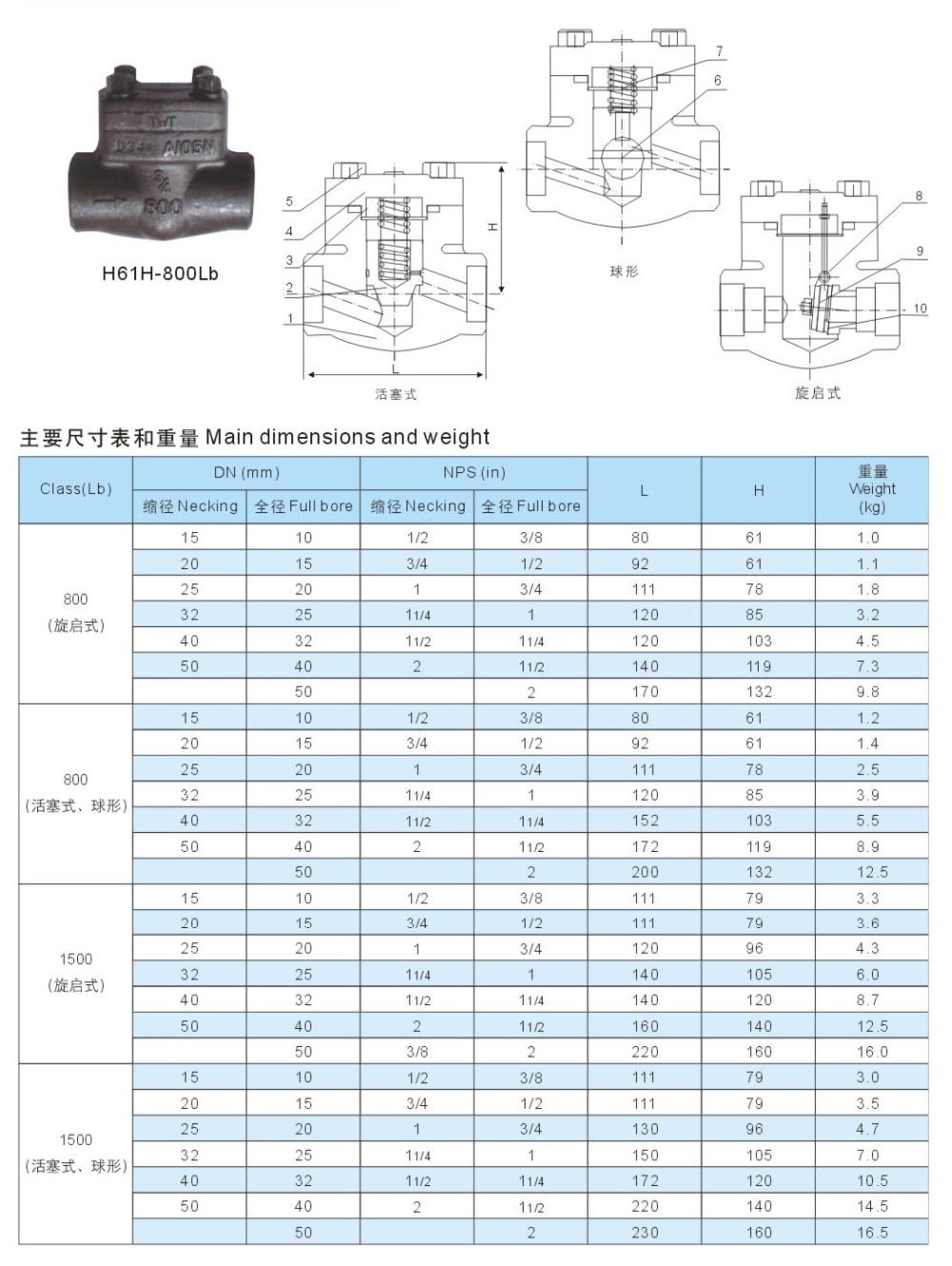

    Face-to-face dimension acc to ASME B16.10.

    For ANSI B16.5 CLASS 600, 800, 1500 socket weld end.Test as API598.

    socket welded forged check valve

    Working Pressure

    Class600/800/1500

    Testing Pressure

    Shell: 1.5 times rated pressure,

    Seat: 1.1 times rated pressure.

    Working Temperature

    -10°C to 250°C

    Suitable Media

    Oil and gas.

    socket welded forged check valve

    Part

    Material

    Body/Bonnet

    ASTM A105, A182 F304/316/304L/316L

    Disc

    ASTM A105, A182 F304/316/304L/316L

    socket welded forged check valve

    socket welded forged check valve
