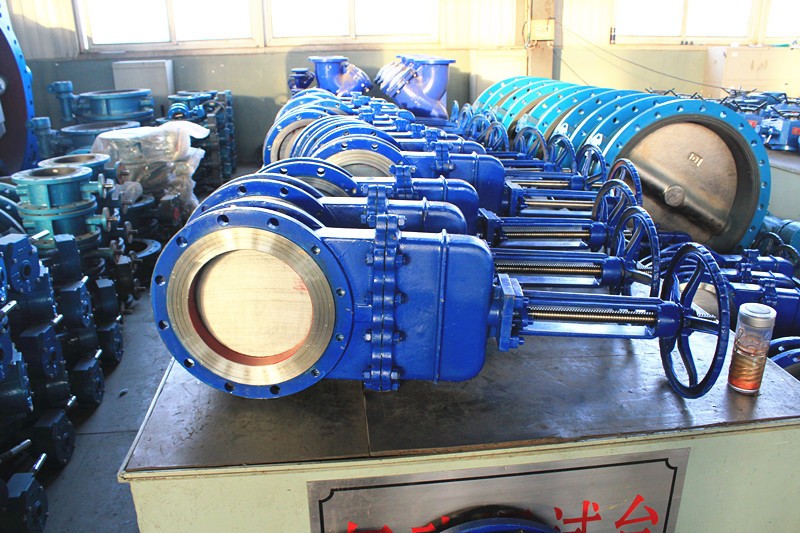

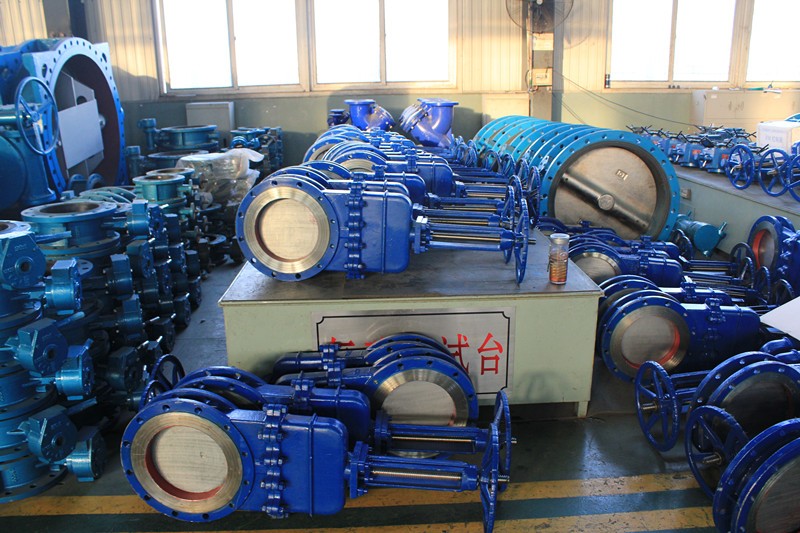

Inside Disc Valve Knife Gate valve

Short Description:

Inside Disc Valve Knife Gate valve ]Inside Disc valve Knife Gate Valve1)DN:2″-42″ PN:6/10/162)Medium:water drinking water sewage ect.3)Tem:-10~80 Celsius Design Features Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard ConstructionsSteel valve:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating St...


Product Detail

Product Tags

Inside Disc Valve Knife Gate valve

  • ]Inside Disc valve Knife Gate Valve1)DN:2″-42″ PN:6/10/162)Medium:water drinking water sewage ect.3)Tem:-10~80 Celsius
  • Design Features
  • Design & Manufacture: API 602
  • Size Range :2″ to 42″ N. B.
  • Pressure Classes :ANSI 150, PN6, PN10, PN16
  • End Connections : Flanged & WAFER
  • Materials (Standard)
  • Standard ConstructionsSteel valve:Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron valve:Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite.
  • Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions.
  • OperationManual, Electric, Hydrau-Pneumatic Actuator
  • Standards Compliance MSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598
  • Quality Assurance Accredited with ISO 9001 and API Q1 & CE Quality Assurance Programmes.
  • Inside Disc Valve Knife Gate valveInside Disc Valve Knife Gate valveInside Disc Valve Knife Gate valve
