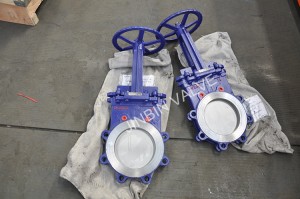

rising stem Knife Gate Valve lug type

Short Description:

rising stem Knife Gate Valve lug type Design & Manufacture: API 602 Size Range :2″ to 42″ N. B. Pressure Classes :ANSI 150, PN6, PN10, PN16 End Connections : Flanged & WAFER Materials (Standard) Standard Constructions Steel: Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron: Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE ...


Product Detail

Product Tags

rising stem Knife Gate Valve lug type

  • Design & Manufacture: API 602
  • Size Range :2″ to 42″ N. B.
  • Pressure Classes :ANSI 150, PN6, PN10, PN16
  • End Connections : Flanged & WAFER
  • Materials (Standard)
  • Standard Constructions Steel: Cast Carbon Steel A216 Gr WCB Body and Bonnet. F316 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite. Iron: Cast Iron A126 GR. B Body and Bonnet. F304 Stem & Gate, Resilient or Metal Seating Stem packing PTFE / graphite composite.
  • Manufacturing to NACE MR-01-75 on request. Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials. Various trim materials available to suit service conditions.
  • Operation Manual, Electric, Hydrau-Pneumatic Actuator
  • Standards Compliance MSS SP-81Face to Face Dimension: MSS SP-81 Pre-temperature Rating: ANSI B16.34 Flanged Dimension: ANSI B16.5, DIN2533 Inspect & Test: API 598
  • Quality Assurance     Accredited with ISO 9001
