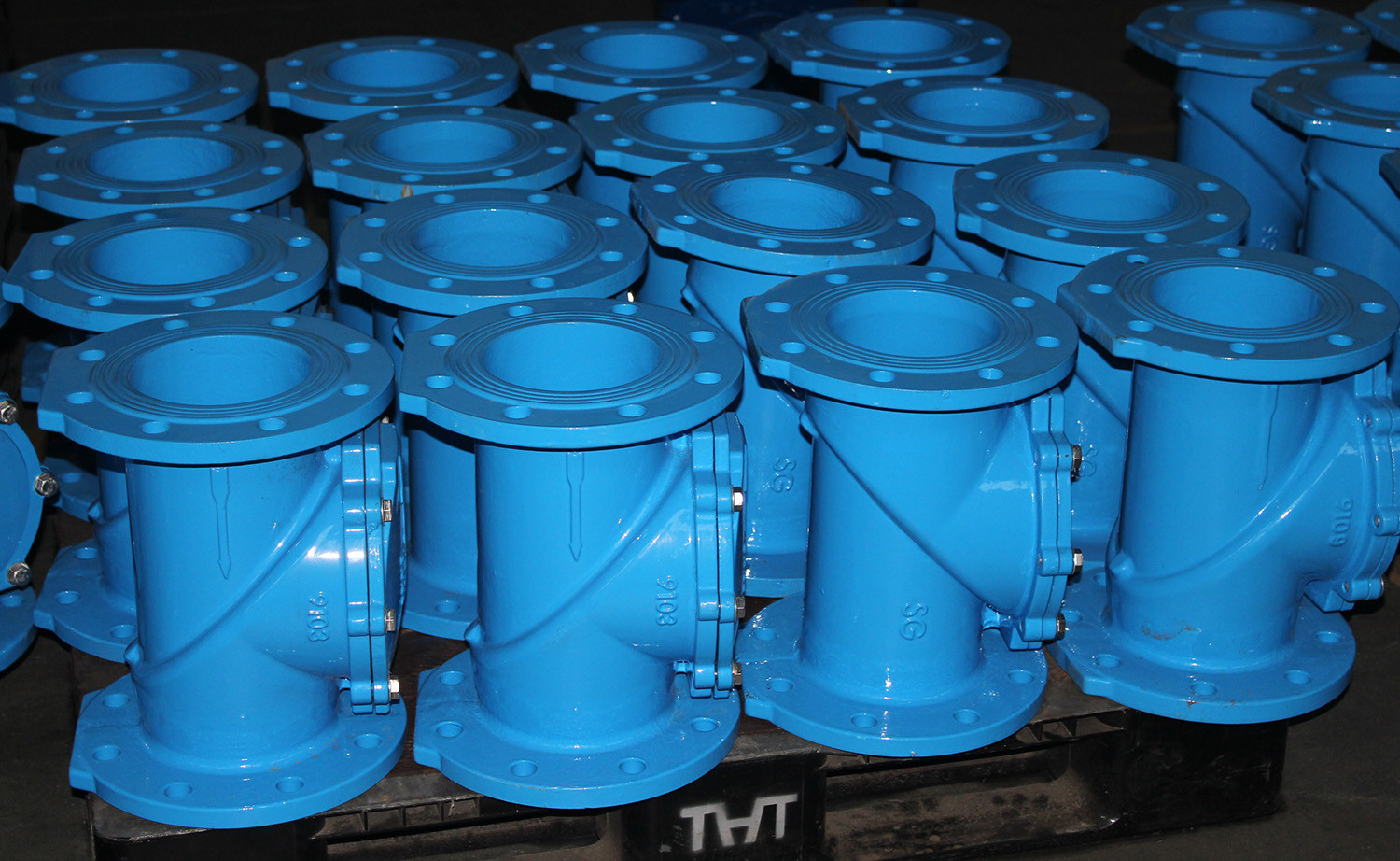

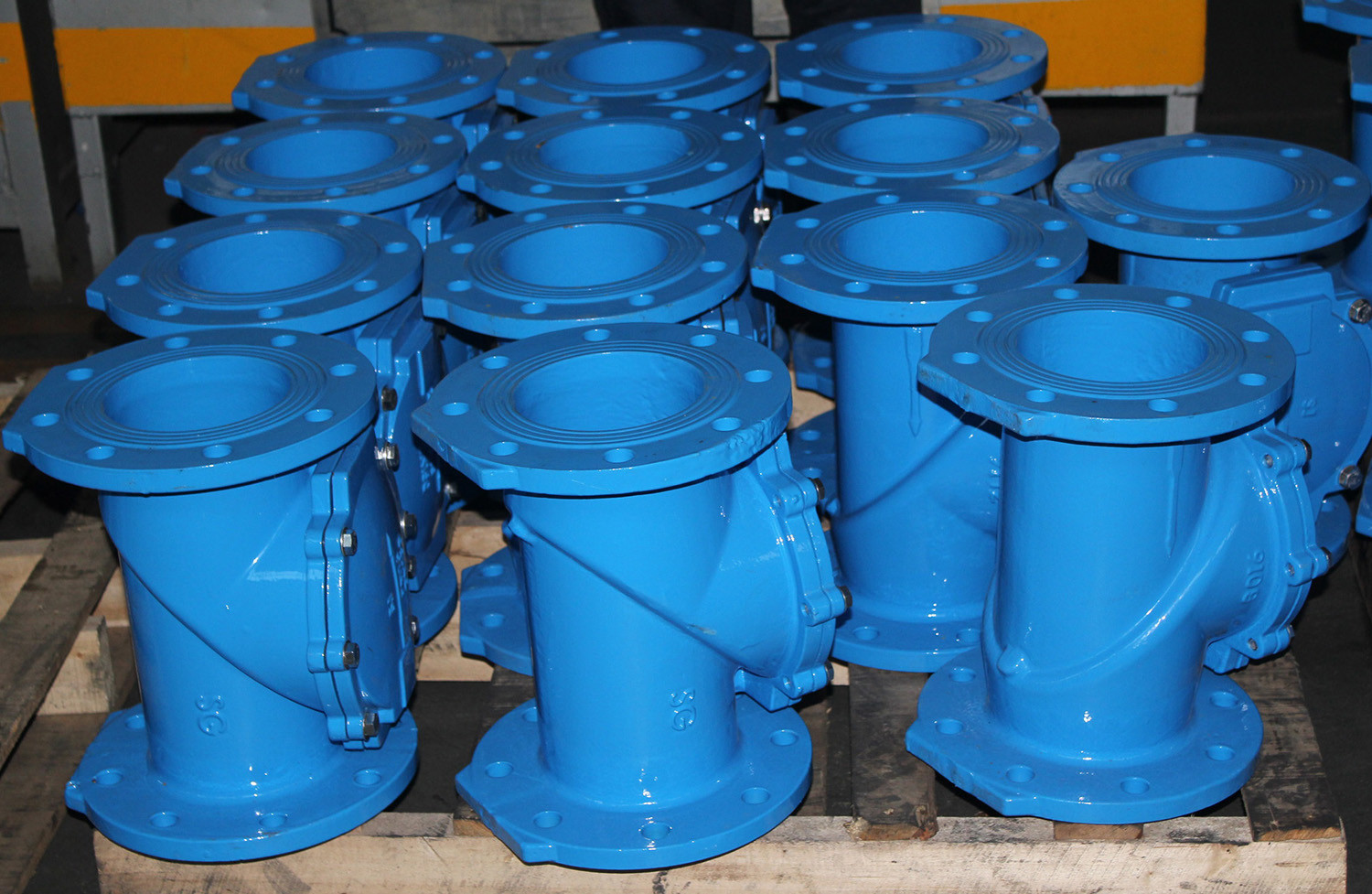

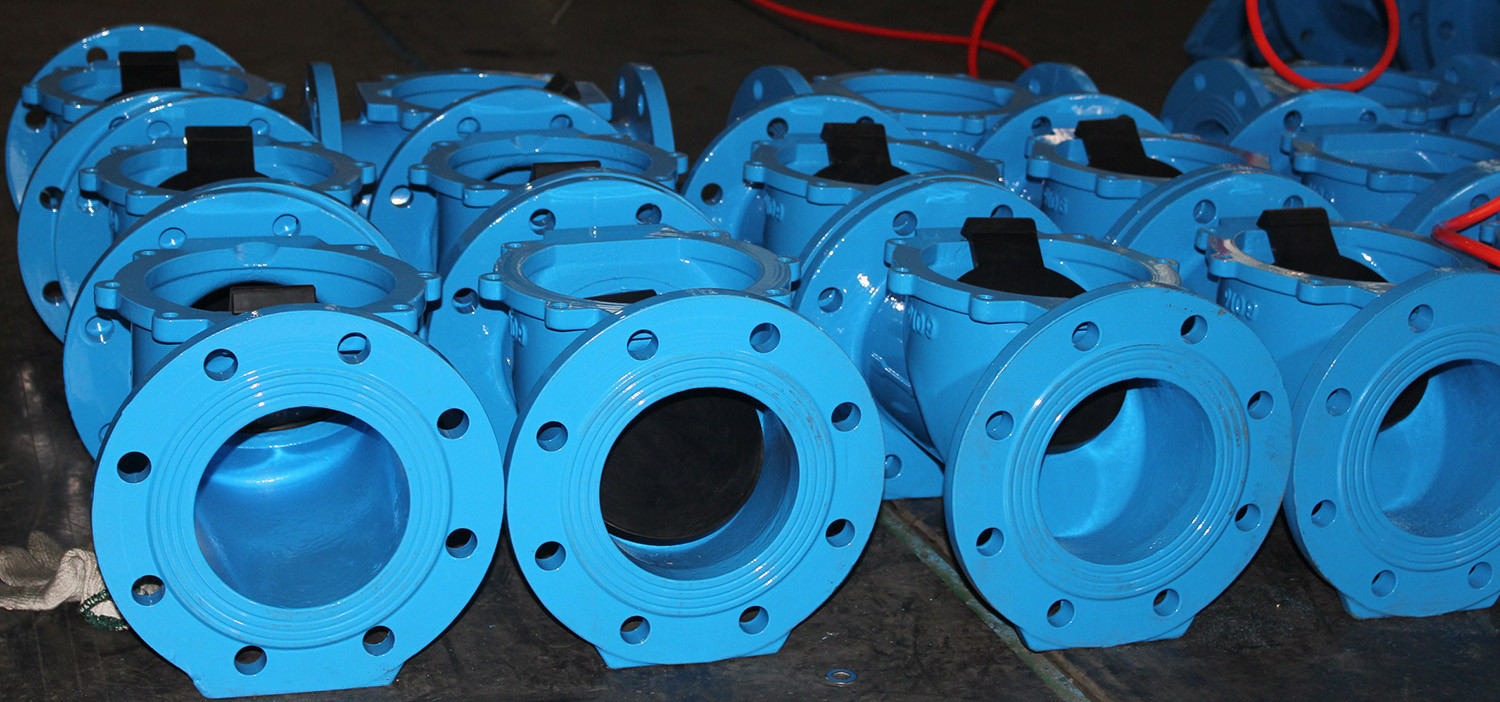

Rubber flapper swing check valve

Short Description:

Cast iron swing check valve flap check valve  Rubber flapper swing checkvalves are uniquely simple in design but durable for use on a variety ofapplications. With only three major parts:body, flapper and cover, there is relatively on maintenance. However, theflapper can be replaced in a matter of minutes. The valve body seat is on anangle of 45 degree to the centerline of the pipe, permitting horizontal orvertical flow up installation. With the flapper full open, there is a straightunobstruc...


Product Detail

Product Tags

Cast iron swing check valve flap check valve

Rubber flapper swing check valve

Rubber flapper swing checkvalves are uniquely simple in design but durable for use on a variety ofapplications.

With only three major parts:body, flapper and cover, there is relatively on maintenance. However, theflapper can be replaced in a matter of minutes. The valve body seat is on anangle of 45 degree to the centerline of the pipe, permitting horizontal orvertical flow up installation. With the flapper full open, there is a straightunobstructed flow passage, so all foreign matter is flushed away by the flowingmedium. This eliminates clogging. Due to this unobstructed flow passage thepressure drop is considerably lower through the rubber flapper check thanthrough conventional swing check valves.

Normally rubber flapper swingcheck valves are made of ductile iron. The flapper is Buna-N but can becompression molded from various synthetic rubbers.

1.2″-12″ PN: ANSI125/150.

Normally rubber flapper swingcheck valves are made of ductile iron. The flapper is Buna-N but can becompression molded from various synthetic rubbers.

1.2″-12″ PN: ANSI125/150.

2.Medium water gas  ect.

3.Series CSC Model 100.

Characteristics:

  • swing type, Bolted bonnet
  • Sandard Material avaiable in:
  •    Body/Bonnet:Cast Iro and Ductile Iron
  •    Disc:Cast Iron or ductile iron
  •    Seat:Brss
  •    Hand-wheel:Cast Iron or Ductile Iron
  • Size ranges avaiable from 2 inches to 12 inches
  • Pressure Rating in ANSI 125 & ANSI 150
  • Operation:manual
  • Technial data:
  •    Design & manufacture: ANSI B16.10, MSS SP-71

       Face to face dimension:ANSI B16.10, MSS SP-71

       Flanged dimension:ANSI B16.1/16.5

       Inspect and test:ISO 5208/API59

Rubber flapper swing check valveRubber flapper swing check valveRubber flapper swing check valveRubber flapper swing check valve
