NBR lined wafers end electric butterfly valve factory price

Short Description:

NBR lined wafers end electric butterfly valve 1.small size and light weight,easy installation and mintenance 2.long service life 3.NBR lined disc ,steel can’t contact with medium,against corrosiveness is good 4.leakage rate:0 5.suitable medium: Water, seawater, gas, acid, alkali organic compounds Overview Size 1.5″-24″ Pressure PN10/PN16 End Connection Wafer/Lug/Flange Operation Handwheel/Worm gear/Electric/Penufactic/Hydraulic Design standard EN593/MSS SP67...


  • FOB Price: US $10 - 9,999 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

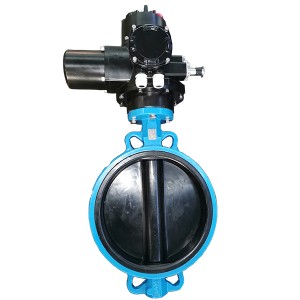

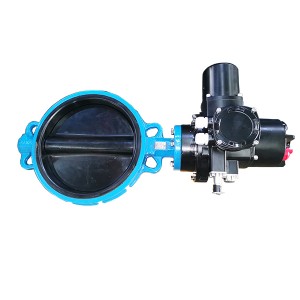

    NBR lined wafers end electric butterfly valve

    1.small size and light weight,easy installation and mintenance

    2.long service life

    3.NBR lined disc ,steel can’t contact with medium,against corrosiveness is good

    4.leakage rate:0
    5.suitable medium: Water, seawater, gas, acid, alkali organic compounds

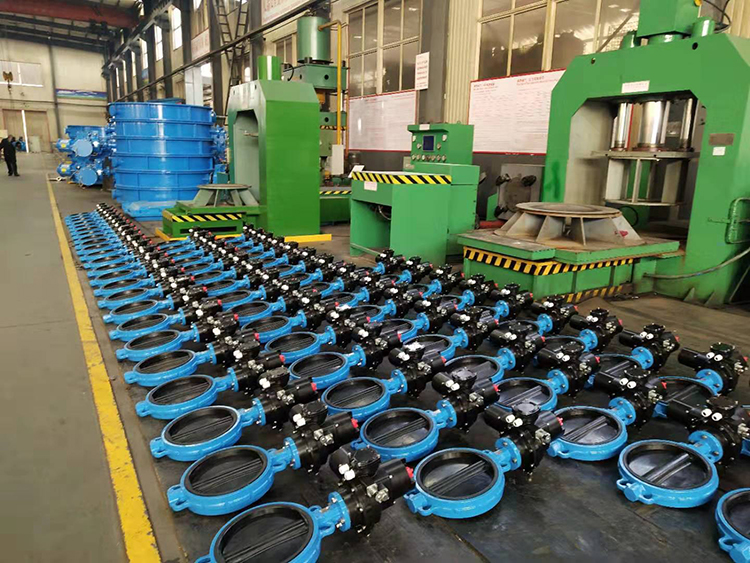

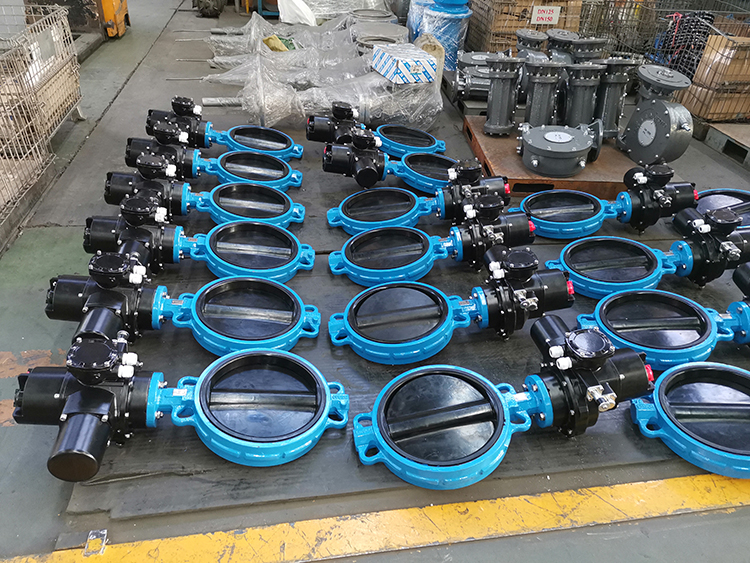

    butterfly-valve7butterflyvalve 3
    Overview
    Size 1.5″-24″
    Pressure PN10/PN16
    End Connection Wafer/Lug/Flange
    Operation Handwheel/Worm gear/Electric/Penufactic/Hydraulic
    Design standard EN593/MSS SP67/API609/BS5155
    End standard ANSI B16.1/ANSI B16.5/DIN2501/EN1092
    Test standard API598/ ISO5208
    Tempetature -15-+150℃
    Body material Ductile iron,WCB/stainless steel
    MOQ 1Sets

    Pressure and Temperature ratings

    working pressure 1.0Mpa
    Shell test 1.5Mpa
    Sealing test 1.1Mpa
    Size DN300
    End Connection Wafer type
    Actuator Electirc
    Design standard EN593
    End standard EN1092

    Materials

    part material
    body ductile iron
    Disc ductile iron lined NBR
    Body seal Lined NBR
    Shaft SS420
